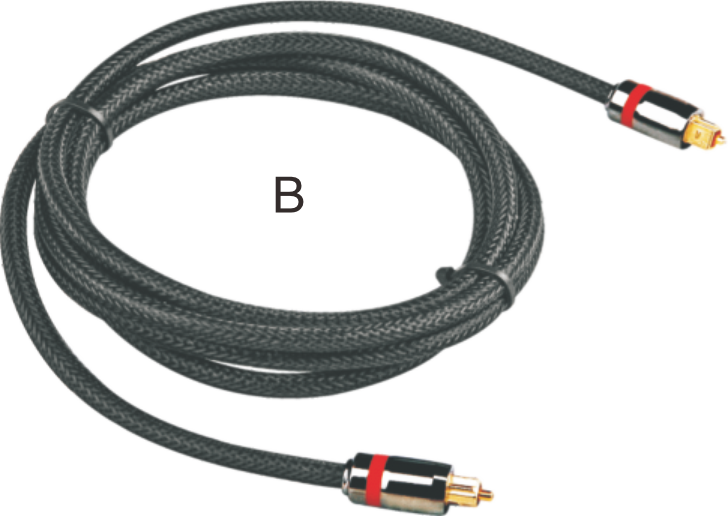

Transmits upto 8 channels of audio using twenty-four karat(24k)gold-plated Toslink plugs.Through a fiberoptic cable.
Parameter | Value |
Insertion Loss | Max:2.0dB |
Interchangeability | Max:1.0dB |
Typical Attenuation | 0.20dB/m(WaveLength:650nm) |
RefractiveIndex | StepIndex |
Numeral Aperture | 0.50 |
MinimumBendRadius | 25mm |
Tensile Strength | Max:1.0dB(0-7N) |
Vibration | Max:1.0dB(5-50Hz,1.5mm Amplitude) |
Outerisolationφin | 6.0mm |
Operating Temperature | -50-+70.℃ |
Storage Temperature | -50-+70.℃ |
Modle | Length |
1.5FT | 1.5FT/0.45M |
3.0FT | 3.0FT/0.9M |
6.0FT | 6.0FT/1.8M |
10FT | 10FT/3.0M |
15FT | 15FT/4.5M |
20FT | 20FT/6.0M |
25FT | 25FT/7.5M |
30FT | 30FT/9.0M |
