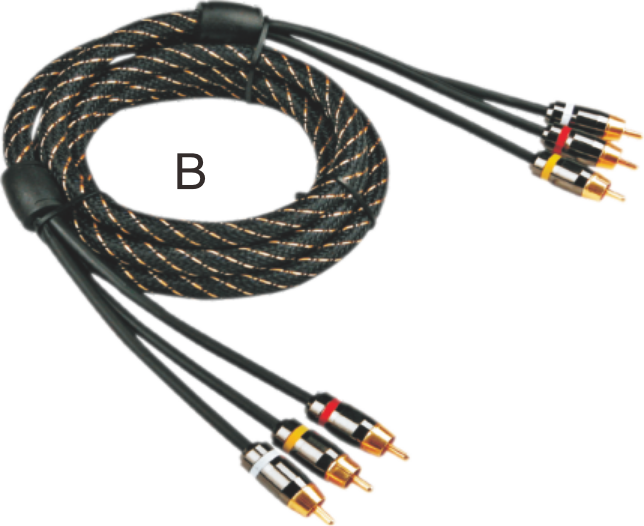

ProvidesstandarddefinitionvideoSignal.
Transmits 2 channels audio.
Conductordrainsφmm: | OFC22AWG99.99% |
Conductorinsulation: | PEred+white+yellow |
Conductor insulationφin mm | 1.9 |
Fillermaterial: | |
1stshield: | AL |
2ndshield: | OFCbraided |
Outerisolation: | PVCblack |
Outerisolation: | Black+yellow nylonjacket |
Outerisolationφinmm: | 9 |
| Modle | ength |
1.5FT | 1.5FT/0.45M |
3.0FT | 3.0FT/0.9M |
6.0FT | 6.0FT/1.8M |
10FT | 10FT/3.0M |
15FT | 15FT/4.5M |
20FT | 20FT/6.0M |
25FT | 25FT/7.5M |
| 30FT | 30FT/9.0M |
Conductor resistance | Shield resistance | Capacity Innercond | Cspacity inner condShield innercond | Working temperature min/max | Working Voltag overflash | Nomimpedance |
130ohm/km | 25ohm/km | 35PF/m | 52PF/m | -20~60℃ | 30V | 110ohm |
